Space segment

Space Terminals

Satellite to satellite. Straight down to ground.

Space-qualified optical terminals for inter-satellite mesh and direct-to-earth downlink, sized for a cubesat payload budget.

10

Gbps @ 2,000 km

8,000

km ISL reach

1,100

grams, downlink unit

≤10

Seconds to acquire

The hardware

Satellite to satellite. Straight down to ground. Every unit ships from the same production line and shares one pointing, acquisition and tracking stack.

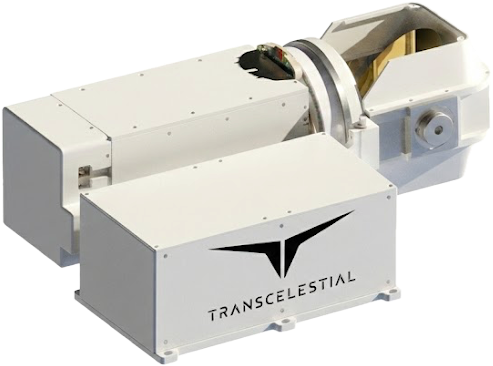

Space Terminals terminal.

Space ISL

10 Gbps @ 2,000 km

4U internal + 1U external, gimballed 80 mm aperture.

Space Downlink

10 Gbps down

1U, 1.1 kg, 4 W average. 500–1,500 km range.

TRing & Borg DC

24 Tbps LEO ring

The orbital backbone the terminals feed, at 70 ms RTT.

Specifications

Published in full. Nothing withheld.

Space ISL, inter-satellite

Mass & size
4,900 g · 4U internal, 1U external
Optics
gimballed mirror, 80 mm aperture
Electrical
10 W avg · 40 W peak · 14–40 V DC
Interfaces
10GBase-T · CAN (CSP) · 2 Tb storage
Rate at range
10 Gbps @ 2,000 km · 1 Gbps @ 8,000 km
Acquisition
≤ 10 s

Space Downlink, space to ground

Mass & size
1,100 g · 1U (97 × 97 × 90 mm)
Electrical
4 W avg · 25 W peak · 14–40 V DC
Interfaces
Ethernet 1G · serial · 1 Tb storage
Downlink
10 Gbps
Uplink
100 Mbps
Range · PAT
500–1,500 km · 0.8° (3σ)

Security

Post-quantum cryptography
optional
Advanced VPN (WireGuard)
optional

Run a private mesh,
or join the ring.

LAN Mode gives you a physically separated constellation. Cloud Mode adds the global fleet, TRing access and direct multi-cloud gateways.

CapabilityLAN ModeCloud Mode
Project & lifecycle
Mission & CONOPS analysis✓✓
Order-to-launch lifecycle support✓✓
Post-launch support8×524×7
Connectivity
Client-owned mesh (sat-to-sat)✓✓
Transcelestial Ring (TRing) access×✓
Global fleet downlink / uplink×✓
Multi-cloud gateway (AWS / Azure / GCP)×✓
Security
Post-quantum cryptographyOptionalOptional
Advanced VPN (WireGuard)OptionalOptional
Two satellites in orbit linked by a laser beam above the Earth.

The terminal we fly is the terminal we hardened on Earth

Same photonics stack, same production line as the 300 km of laser network already carrying 1.8 Tbps a day on rooftops and towers.

Where it goes

Deployments running today, on live commercial service.

Constellation backhaul

Route traffic in orbit instead of bouncing it off the ground at every hop.

Earth observation

Move high-volume imagery from orbit into processing without a teleport queue.

Sovereign and defence

A physically separated mesh that never touches shared infrastructure.

Research missions

Space-qualified for Europe’s first low-orbit 6G research laboratory.

Space segment, available now

Link budget, interface control documents and a deployment window.
